FEATURES
TIR accuracy on tool end can now be adjusted within 2µm.
Available with our standard super G1 chuck holders.
Easy operation and simple setting and removing.
Available with our standard super G1 chuck holders.
Easy operation and simple setting and removing.

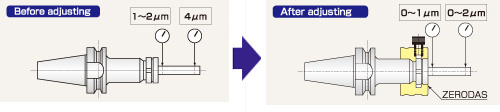

TIR accuracy by ZERODAS

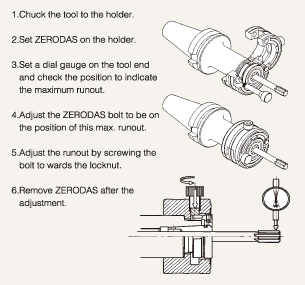

How to set

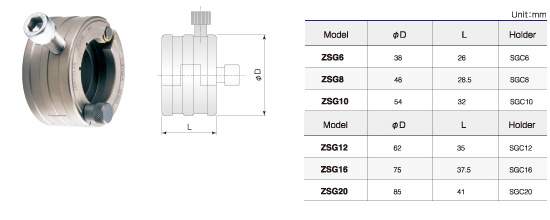

page topTIR Adjuster "ZERODAS" for Super G1 Chucks
| ♦ | Even among the above standard SGC holders,there are some unable to use ZERODAS. |
| ♦ | ZERODAS can be used for our Super G1 chuck holders(BT shank and HSK shank). |
