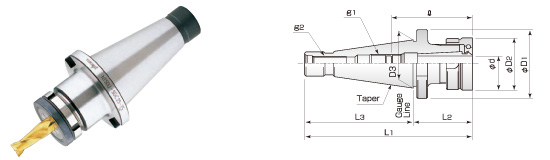

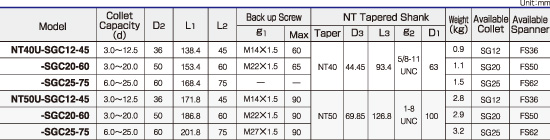

Super G1 Chucks with National Standard Taper
| ♦ | Special sizes of internal thread are available. |
| ♦ | Collet and Spanner are not included in the above.They are separate accessories. |

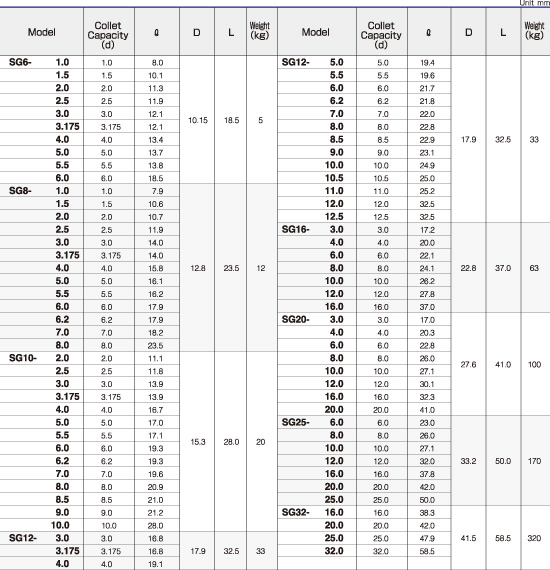

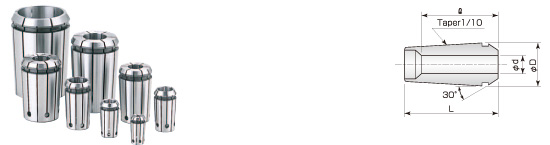

page topSG Collets
In addition to the standard collets,special sizes are also available.
| ♦ | Runout Accuracy:Guaranteed up to -0.05mm to the collet capacity. |
| ♦ | Collet Range:Up to -0.1mm of the collet capacity. |

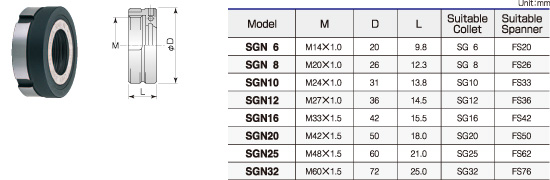

Lock Nuts

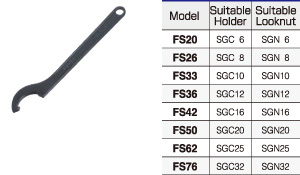

Hook Spanners
| ♦ | These hook spanners are special-made accessories for exclusive use to Super G1 Chucks,but,optional,to be ordered separately. |

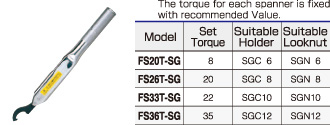

Torque Limit Spanners
| ♦ | The torque for each spanner is fixed with recommended Value. |
