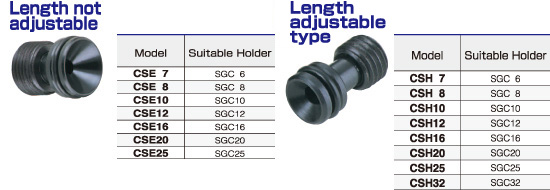

Coolant Sealing Back-up Screws
| ♦ | Coolant Sealing Back-up Screws are separate accessories. |

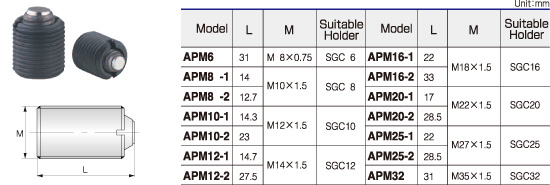

page topLength Adjustment Bolt(APM)
| ♦ | Length Adjustment Bolts(APM) are separate accessories. |

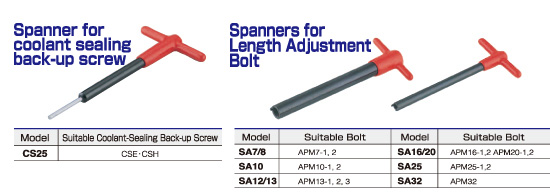

Spanners for Coolant Sealing Back-up Screws
Length Adjustment Bolt(APM)
| ♦ | Spanners for Coolant Sealing Back-up Screws are separate accessories. |
| ♦ | Spanners for Length Adjustment Bolts(APM) are separate accessories. |

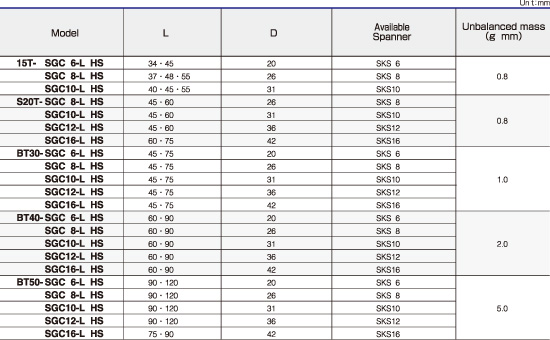

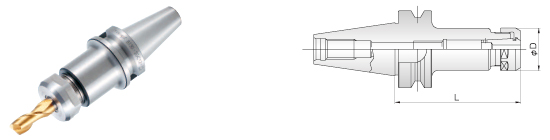

Super G1 Chucks for High Speed Revolution
· The locknut is for high speed revolution.
· With balancing for high speed revolution.
· The integrated runout accuracy of 5μm is guaranteed.
· With balancing for high speed revolution.
· The integrated runout accuracy of 5μm is guaranteed.
| ♦ | Collet,Retention Knob and Spanner are not included in the above.They are separate accessories. |

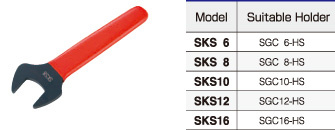

Spanners
