- << Previous page

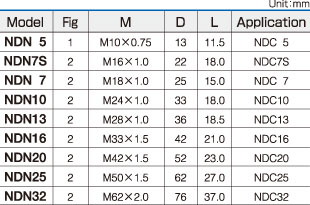

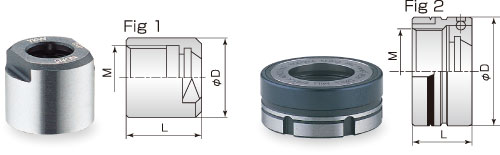

Lock Nuts

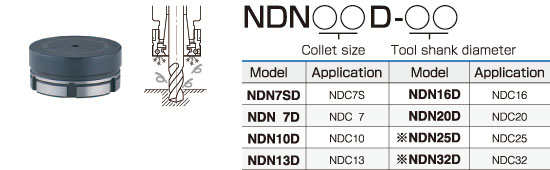

page topDust Protection Lock Nuts
· To prevent cutting chips from entering into the
slits of the collet.
· The steel cover makes the lock nut withstand the heavy cutting work and increase safety.
· The steel cover makes the lock nut withstand the heavy cutting work and increase safety.
| ♦ | Dust Protection Lock Nuts are separate accessories. |
 |
Manufacturing by order. |

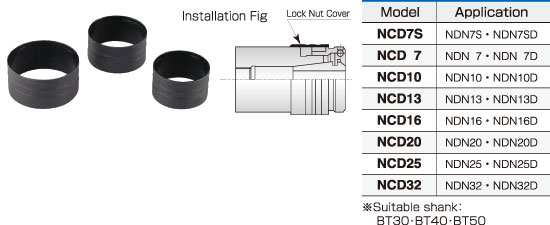

Lock Nut Cover
· To prevent cutting chips from entering thread portion of the holder.
· To prevent oil-splashing from the hooking groove on the Lock Nut.
· To prevent oil-splashing from the hooking groove on the Lock Nut.

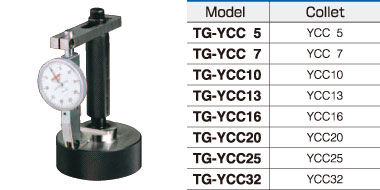

Taper Gauges
When the spindle or the tool is manufactured by the customer, the details must be inquired to us. The drawings will be submitted and also the necessary taper gauges will be made available.
