New Drill Mill Chucks

Tooling System

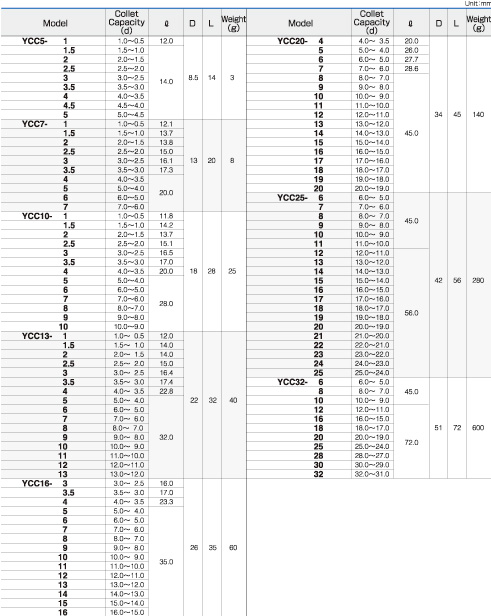

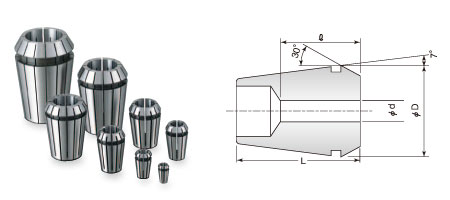

Drill Mill Collets

In addition to the standard collets,AA-class collets are also available
In ordering AA-class collets,Please specify as "YCC13-6AA"


Example:Incase of chucking the drill of φ12.7 with YCC13-13 must be selected.
When chucking an end mill,please use the collet of which maximum capacity is equal to the dia,of the end mill shank.
Example:For an end mill of φ18 shank,use YCC20-18.

page top

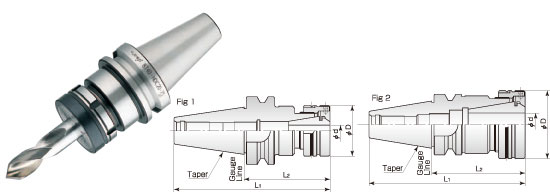

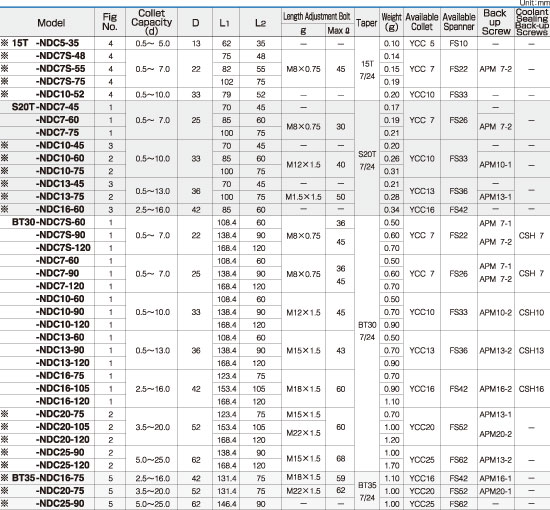

15T/S20T/BT30/BT35 New Drill Mill Chucks



Coolant seal cannot be installed.For length adjustment bolt for the chuck of Fig.2,please inquire to us.For the chuck of Fig.3,length adjustment bolt cannot be installed.
Dimensions of the Taper Shank of 15T are in accordance with JBS-4002-1987.
Dimensions of the Taper Shank of S20T are in accordance with JBS-4003-1993.
Dimensions of the Taper Shank of BT30 are BT35 in accordance with MAS406-1982 BT Tapered Shank.
15T and 20T have two-flat-face on the body for being hooked with spanner.
Collet,Spanner,Coolanty sealing back up screw.Length adjustment bolt,Retention kbob are not included tin he above.They are separate accessories.

page top

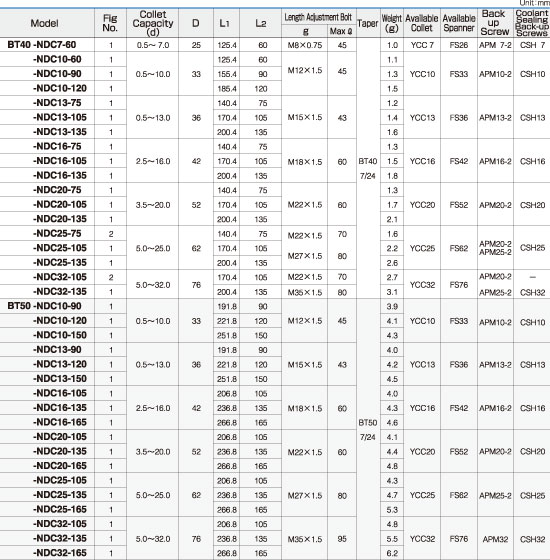

BT40/BT50 New Drill Mill Chucks



Dimensions of the Taper Shank of BT40 and BT50 are in accordance with MAS4003-1982 BT Tapered Shank.
Collet,Spanner,Coolanty sealing back up screw.Length adjustment bolt,Retention kbob are not included tin he above.They are separate accessories.

page top

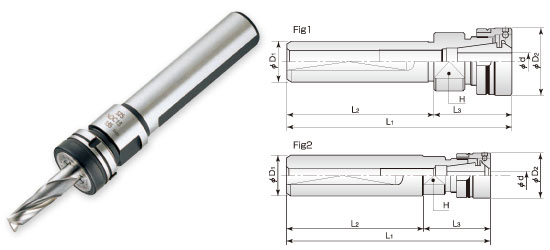

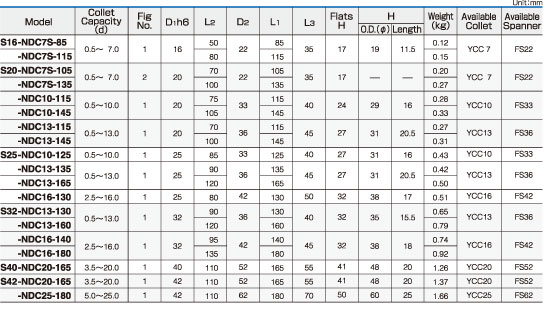

New Drill Mill Chucks with Straight Shank (for Side Lock)



Special sizes are also available of different shank diameters,length ,or combination of both.
Collet,Spanner and Lngth Adjustment Bolt are not included in the above.they are separate accessories.
For NDC7S series,Collet end level is lower than that of the Nut.
Coolant-Sealing Back-up Screw cannot be installed.

page top

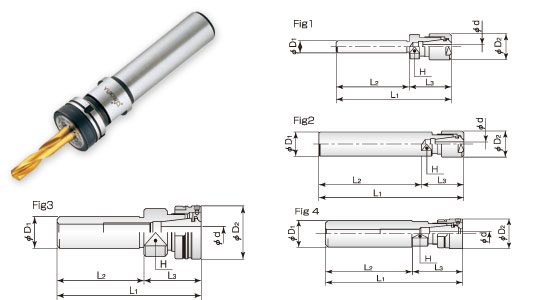

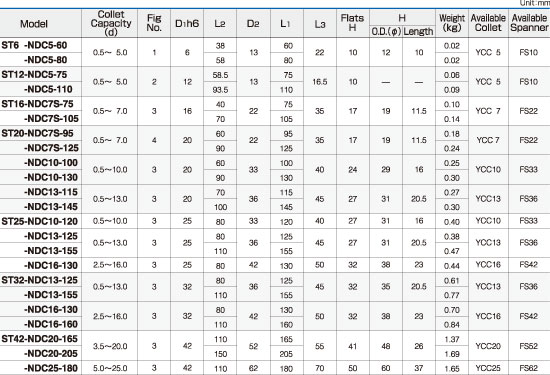

New Drill Mill Chucks with Straight Shank
(for Milling Chucks)



Special sizes are also available of different shank diameters,length ,or combination of both.
Collet,Spanner and Lngth Adjustment Bolt are not included in the above.they are separate accessories.
For NDC7S series,Collet end level is lower than that of the Nut.
Coolant-Sealing Back-up Screw cannot be installed.
