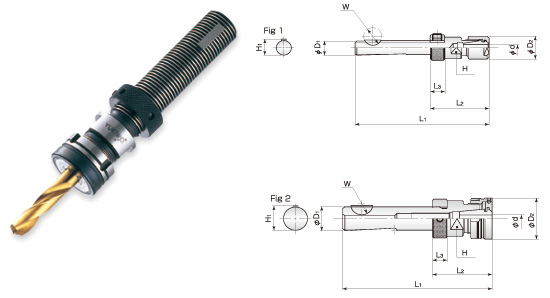

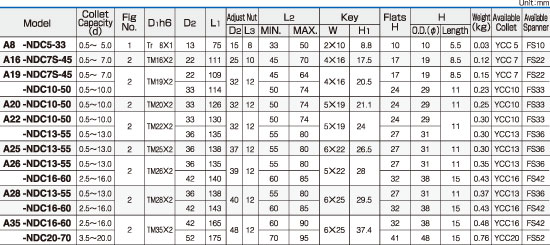

New Drill Mill Chucks with Adjustable Threaded Shank
| ♦ | Special sizes are also available of different shank diameters,length ,or combination of both. |
| ♦ | Collet,Spanner and Length Adjustment Bolt are not included in the above.They are separate accessories. |
| ♦ | For NDC7S series,Collet end level is lower than that of the Nut. |
| ♦ | Coolant-Sealing Back-up Screw cannot be installed. |

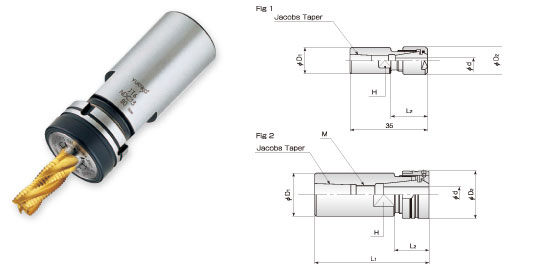

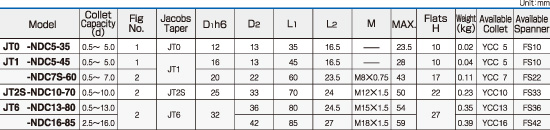

page topNew Drill Mill Chucks with Jacobs Taper
| ♦ | Special sizes are also available of different shank diameters,length ,or combination of both. |
| ♦ | Collet,Spanner and Length Adjustment Bolt are not included in the above.They are separate accessories. |
| ♦ | For NDC7S series,Collet end level is lower than that of the Nut. |
| ♦ | Coolant-Sealing Back-up Screw cannot be installed. |

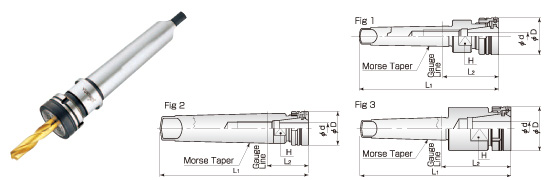

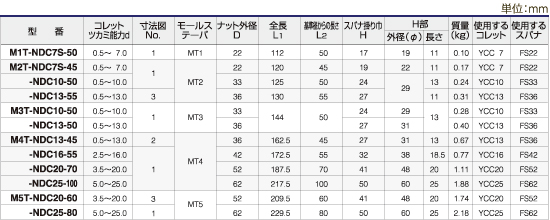

New Drill Mill Chucks with MT Shank
| ♦ | Special sizes are also available of different shank diameters,length ,or combination of both. |
| ♦ | Collet,Spanner and Length Adjustment Bolt are not included in the above.They are separate accessories. |
| ♦ | For NDC7S series,Collet end level is lower than that of the Nut. |
| ♦ | Coolant-Sealing Back-up Screw cannot be installed. |

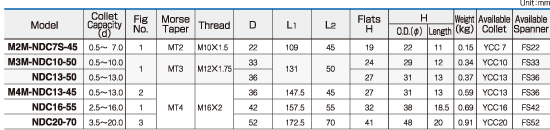

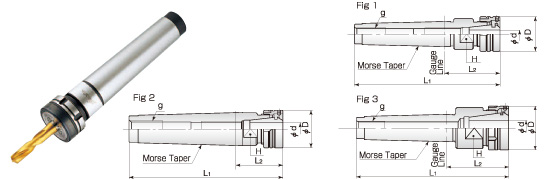

New Drill Mill Chucks with Internal Threaded MT Shank
| ♦ | Special sizes are also available of different shank diameters,length ,or combination of both. |
| ♦ | Collet,Spanner and Length Adjustment Bolt are not included in the above.They are separate accessories. |
| ♦ | For NDC7S series,Collet end level is lower than that of the Nut. |
| ♦ | Coolant-Sealing Back-up Screw cannot be installed. |
