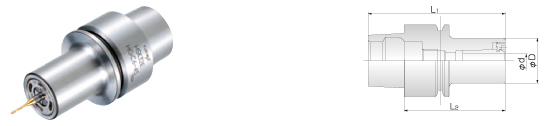

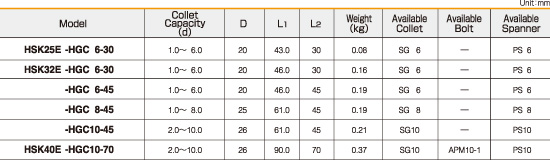

Hybrid G1 Chucks with HSK 25E/32E/40E

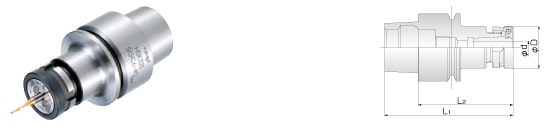

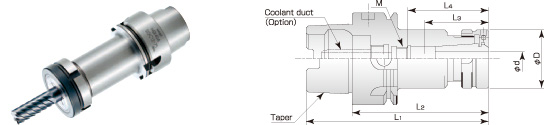

page topSuper G1 Chucks with HSK 25E / 32E / 40E

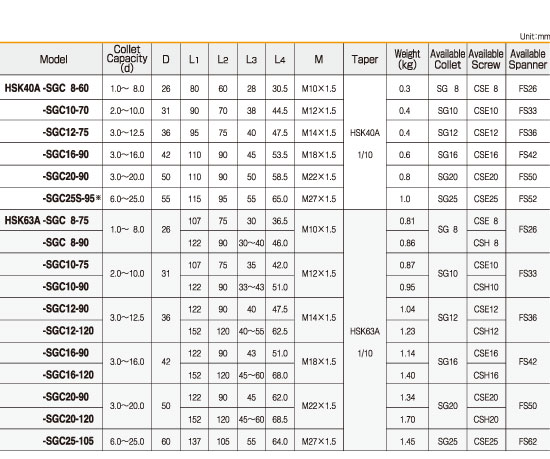

Super G1 Chucks with HSK 40A / 63A
 |
Specifications exclusive for Brother's machine. |
| ♦ | Coolant duct and coolant sealing back-up screw are separate accessories. |
| ♦ | L3 is the length when the coolant sealing back-up screw is mounted. |
| ♦ | Holes for manual clamping and ID chip are available as option. |

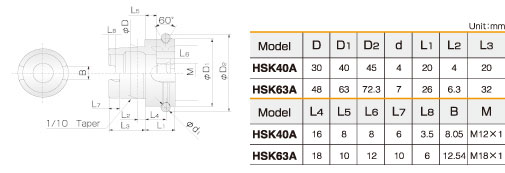

HSK Holder Dimensions

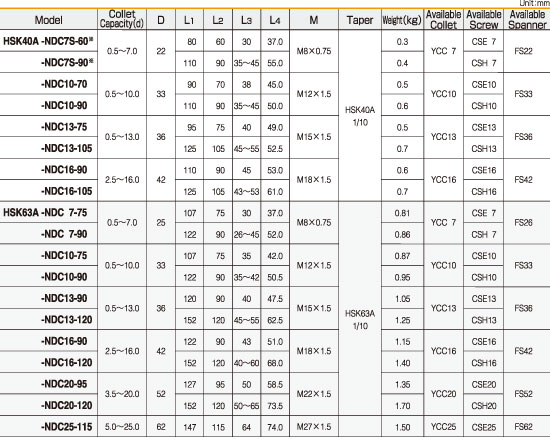

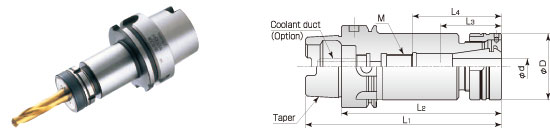

New Drill Mill Chucks with HSK 40A / 63A
|
For NDC7S series, collet end level is lower than that of the Nut. |
| ♦ | Coolant duct and coolant sealing back-up screw are separate accessories. |
| ♦ | L3 is the length when the coolant sealing back-up screw is mounted. |
| ♦ | Holes for manual clamping and ID chip are available as option. |

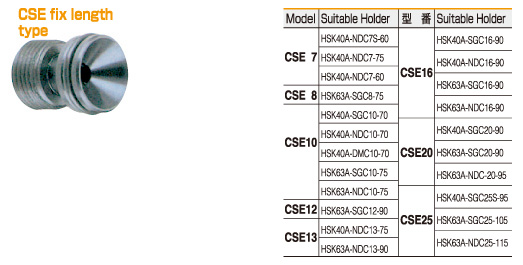

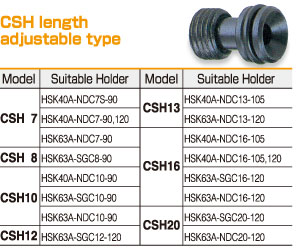

Coolant Sealing Back-up Screws (Special Accessory)
Coolant sealing back-up screw with a floating mechanism to
increase contacting to the tool.
