Tooling System

Tap Holder

Tooling System

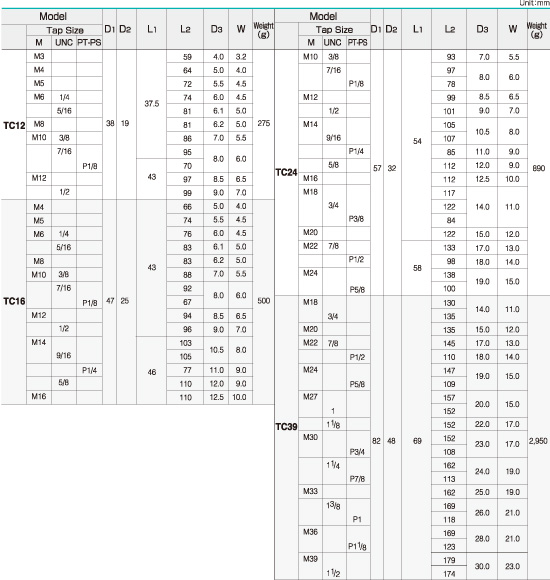

Tap Collets (TC Type) Built-in Torque Adjust Mechanism

Torque of each tap collet, classified according to each size, is pre-adjusted to 60% of the tap breakage torque.
For the taps, even if different in size but having same D3 and W dimensions, can be used a same tap collet.

page top

Tap Collets (TCN Type)

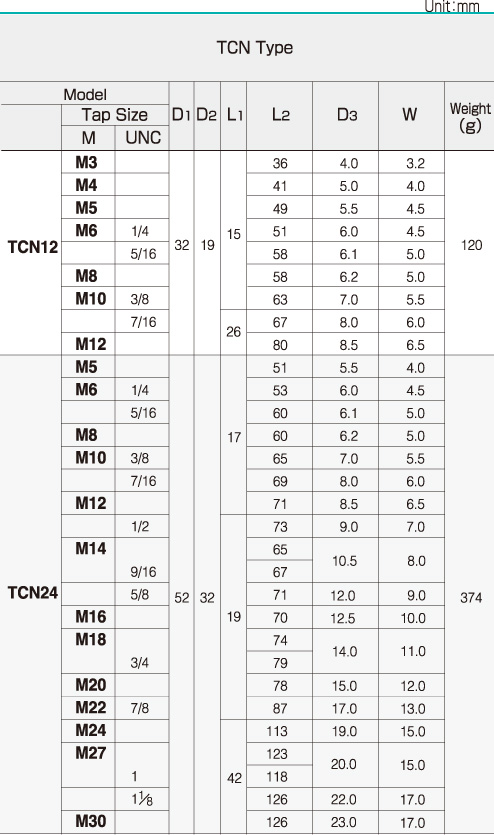

TCN Type ·  ·  ·

features quickly changeable tap and tap collet.

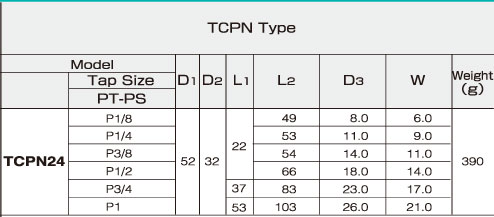

TCPN Type ·  ·  ·

features tap and tap collet clamped by means of side lock (for use on gas tap).

Neither TCN nor TCPN has the built-in torque adjust mechanism.

page top

Floating Tap Holders with BT 30 Shank

Built-in Radial Float Mechanism

The built-in radial float mechanism compensates the centering deviation, if any, between the spindle and the workpiece, which will eventually secure the precise tapping work.
