Tap Holder- Features/Specifications
- Tap Holders with BT Shank
- Tap Holders with MT Shank
- Floating Tap Chucks
- Tap Collets (TC Type)
Built-in Torque Adjust Mechanism - Tap Collets (TCN Type)
- Floating Tap Holders
with BT 30 Shank - << Previous page

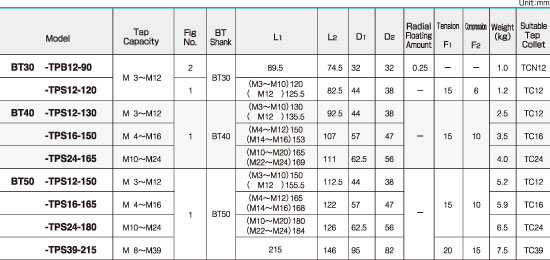

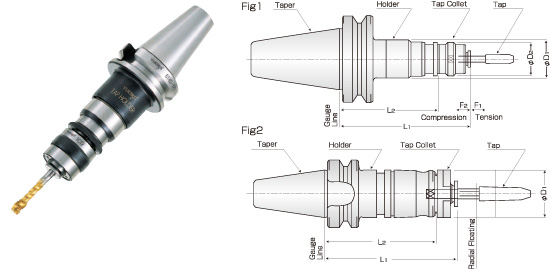

Tap Holders with BT Shank
| ♦ | Dimensions of tapered shank are in accordance with MAS4003-1982 BT Tapered Shank. |
| ♦ | Retention knob is not included in the above. They are separate accessories. |

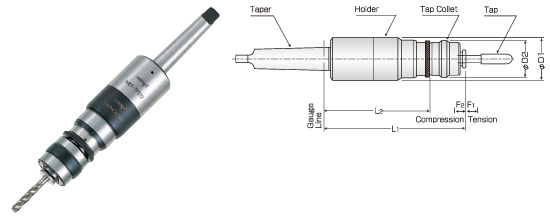

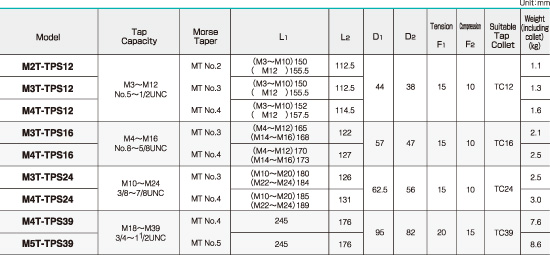

page topTap Holders with MT Shank

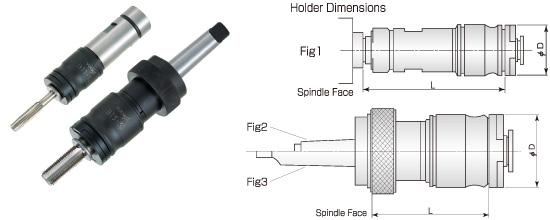

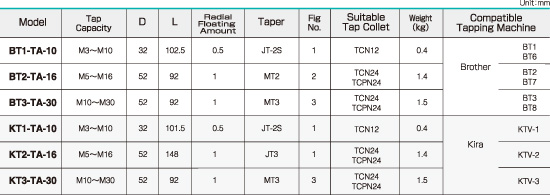

Floating Tap Chucks
Quick Change
Attaching of the tap to the tap collet or the tap collet to the holder can be done quickly by one-touch operation, which will eventually improve the work efficiency.
Built-in radial paralleled floating device
The built-in radial float mechanism compensates the centering deviation, if any, between the spindle and the workpiece, which will eventually secure the precise tapping work.
