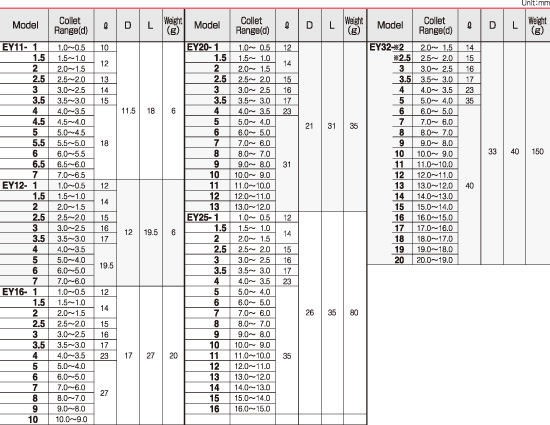

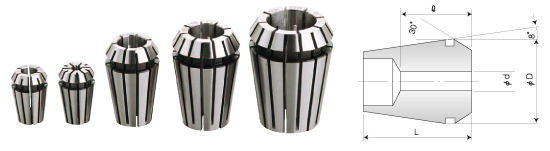

EY Collets (European type:Taper8°)
| ♦ | EY11:Interchangeable with Regofix(ER11). |
| ♦ | EY12:Interchangeable with Schaublin(ESX12). |
| ♦ | EY16:Interchangeable with Regofix(ER16)or Schaublin(ESX16). |
| ♦ | EY20:Interchangeable with Regofix(ER20)or Schaublin(ESX20). |
| ♦ | EY25:Interchangeable with Regofix(ER25)or Schaublin(ESX25). |
| ♦ | EY32:Interchangeable with Regofix(ER32)or Schaublin(ESX32). |
Marked items are to be produced on order basis.

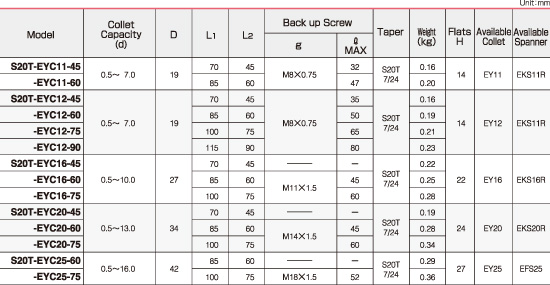

page topEY Chucks with S20T Shank
EY Collets with S20T Shank is built-to-order manufacturing.

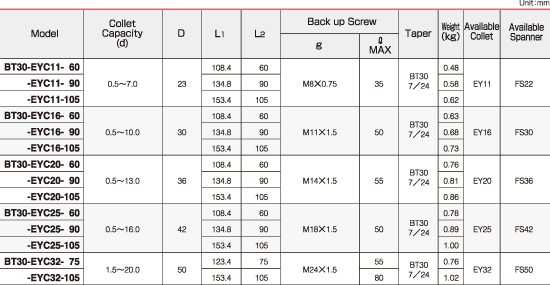

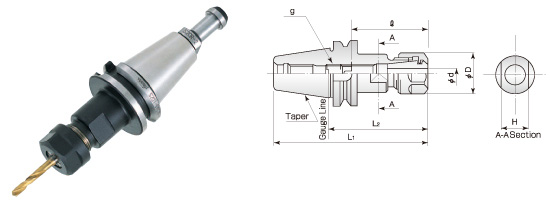

EY Chucks with BT30 Shank

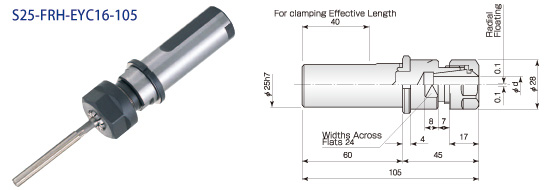

EY Floating Reamer Holder
Specifications
· Shank Diameter:Φ25h7
· Collet:EY16(Φ1〜Φ10)
· Radial Floating Amount:0.1mm(Radius)
