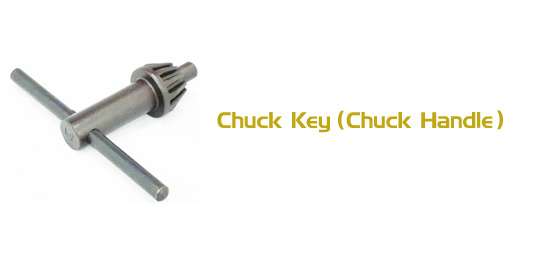

Chuck Key (Chuck Handle)

One Chuck Key (Chuck Handle) is attached with one Drill Chuck as standard accessory. IF the Chuck Key (Chuck Handle) and Drill Chuck are in accordance with JIS, they are interchangeable with other manufacturers’. And, since the Drill Chucks having EL in the model can hold the one-size-larger tool than the nominal diameter, the one-size-smaller chuck key must be used.

  Chuck Key,Chuck Handle
unit : mm
Model Designation L1 L2 d
  JH-4   4m/m(3m/m) 52 30 3.175
  JH-D5   D5m/m 52 36 4
  JH-5   5m/m(6.5ELm/m,8Lm/m) 65 49
  JH-6.5   6.5m/m(M8m/m,J8m/m,10ELm/m) 75 51 5.5
  JH-10   10m/m(M13ELm/m,13ELm/m,16LLm/m) 90 50 6.5
  JH-13   13m/m(16ELm/m) 110 59 8
  JH-14   14m/m(16m/m,BC13) 120 63 9
  JH-19   19m/m 125 79.5 9.5
