TQC Holders

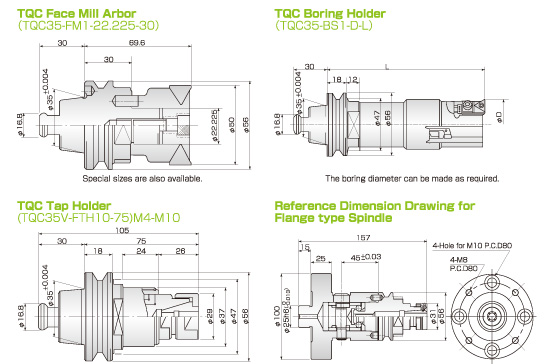

TQC Holder Dimensions


![]() |

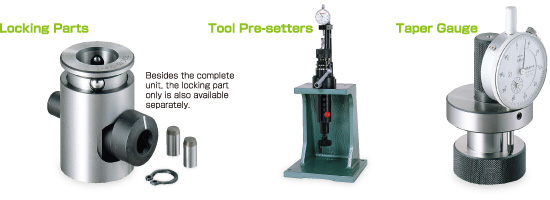

Besides the complete unit, the locking part only is also available separately. |

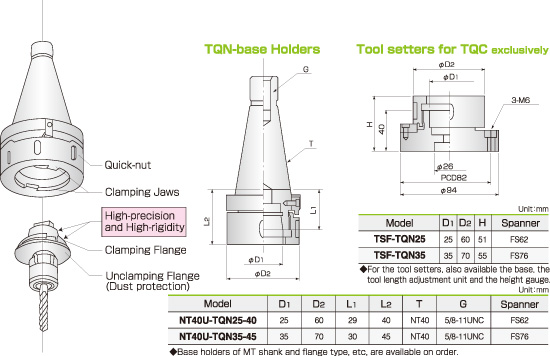

Quick-change system with Duplex-holding by

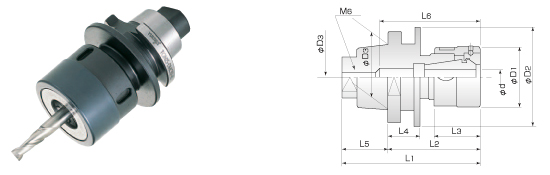

taper and flat surface. TQN Holders
· With the quick nut system, adopted to the holder, the spindle nose length can be made
as shortest as possible.
· The duplex-holding system secures the excellent working accuracy and repeatability.
· The short tapered shank makes the tool changing possible even in a very limited space.
· The unclamping flange prevents cutting chips coming into tapered part.


· The duplex-holding system secures the excellent working accuracy and repeatability.
· The short tapered shank makes the tool changing possible even in a very limited space.
· The unclamping flange prevents cutting chips coming into tapered part.
