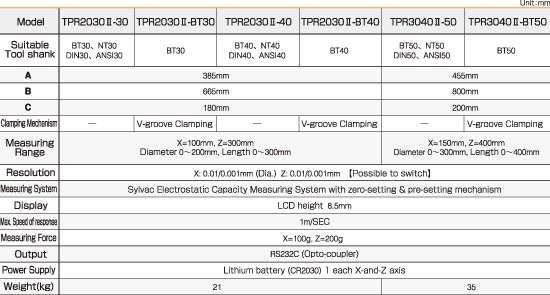

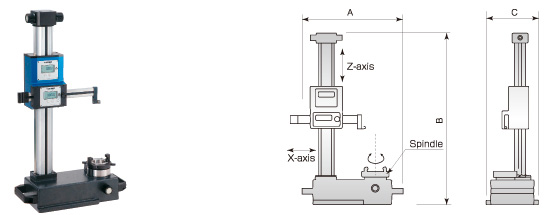

Tool Pre-setters TPR2030II / TPR3040II
Steady·Reliable·Long Life Best Partner for Tools
Simplified measuring with pre-load mechanism and constant measuring
force. No need to use a dial gauge.
· Simple structure and high rigidity.
· Simple handling.
· Having inset Sylvac scale, strong against oil, dust, contamination and
shock.
· Good balanced X-axis and Z-axis.
· Having a constant measuring pressure, no need to use a dial gauge.
· Spindle with highly precise rotation and with lock mechanism.
| ♦ | TQC tooling can also be used. Ex) Model No. TPR2030II-TQC35 |
| ♦ | Special custom-made shanks are also available. |

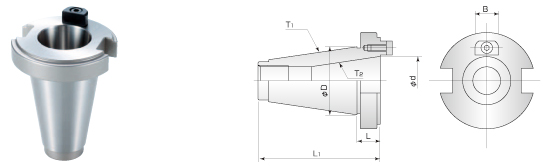

page topAdapt Sleeve for Tool Pre-setters
| ♦ | V-groove clamp is unavailable while the adapt sleeve is in use. |

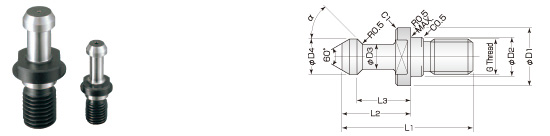

Retention Knobs(JBS)(MAS)
 |
For Brother TC-201 |
| ♦ | Dimensions are in accordance with JIS and MAS. |
| ♦ | Special sizes are also available. |

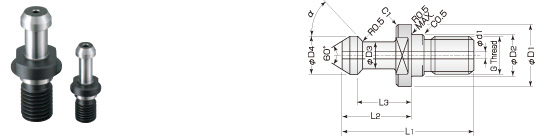

Retention Knobs(with Center Hole)
