Spring collets are perishable tools for fixing a workpiece at the processing, or fixing cutting tools, and used as some parts of a machine or a conveyance machine. It consists of a collet and devices, and a workpiece is that the collet included in the workholding devices open and close, and performs clamping and unclamping of a workopiece.
Spring collets are various by object works, such as size, the clamping method, and clamping force. There is a various shaped spring collets’ form as you can see the top page of a spring collets, and they are used for fix of a workpiece or cutting tools. In case of scroll chuck, a workpiece is clamped by three or four jaws. On the other hand, when we use spring collets, a workpiece is clamped as wrapping in with the number of flexing slot of the collet. Therefore, since the pressure concerning one point ends few, it can clamp powerfully, without pressure's distributing and damaging the whole clamping portion of the workpice.

▲page top

Part name and part size of spring collets were used to be prescribed by JIS B6141-1973 (Japanese Industrial Standard), although JIS B6141-1973 is abolished currently.

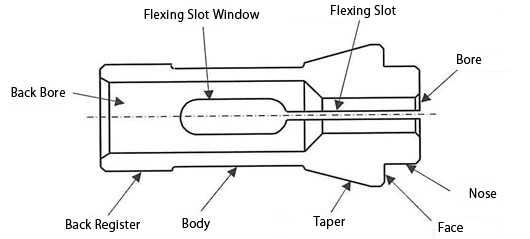

Stationary

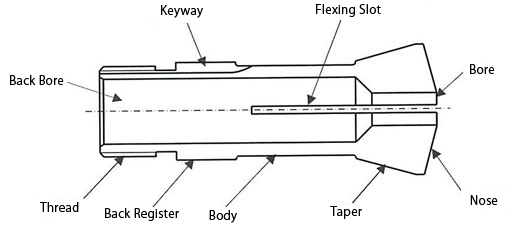

Draw Back

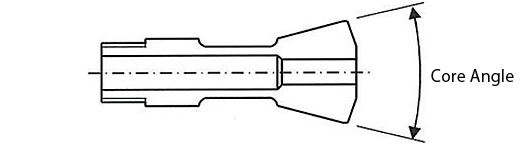

The angle of a taper
The angle of a taper is denoted by double taper. Please inform us if double taper or single taper in order not to mix up.

▲page top

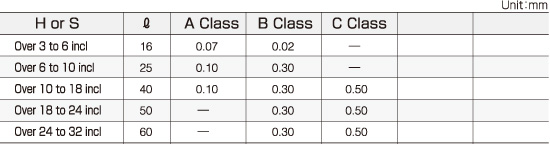

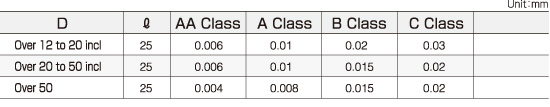

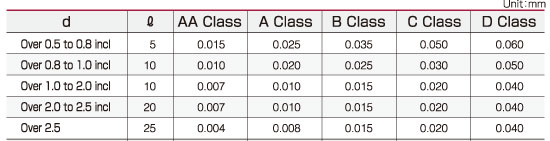

Our collets are classified as follows according to runout degree. When placing the order of collets, please specify the class of runout.

At first time order

About spring collets and workholding devices, we will check customer’s specification, and after exchanging the confirmation of drawings and specifications, then we will start manufacturing. Please ask our sales branch about arranging specification, price, and time of delivery.

At repeat order

We can manufacture without exchanging the confirmation of specifications if we have production history or manufacturing drawings. Please ask our sales branch about arranging price, and time of delivery.
