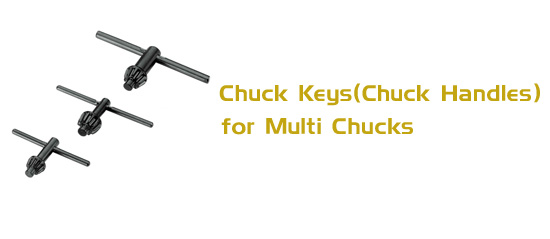

Chuck Keys (Chuck Handles) for Multi Chucks
The chuck Keys (Chuck Handles) for Multi Chucks are different from the Chuck Keys (Chuck Handles) for Drill Chucks used on machine tools and electric power/air drills in the shape of the bevel gear. Therefore, they are not interchangeable. One Chuck Key is attached with one Multi Chuck as standard accessory.
 |
 |
unit : mm
| Model | L1 | L2 | d | Available Multi Chucks |
| MH10(6.5)T | 60 | 35 | 6 | M6.5LB, M10LB |
| MKK | 75 | 37 | 7 | M10LK |
| CKK | 90 | 40 | 7 | M13LK |
| * | For Multi Chucks M6.5LB and M10LB, the Chuck Keys of below also can be used. |
 |
 |
 |
| L-type | Imbalance type | slide type |
| Model : MH10(6.5)L | Model : M10L-200-1 | Model : M10L-200-2 |
