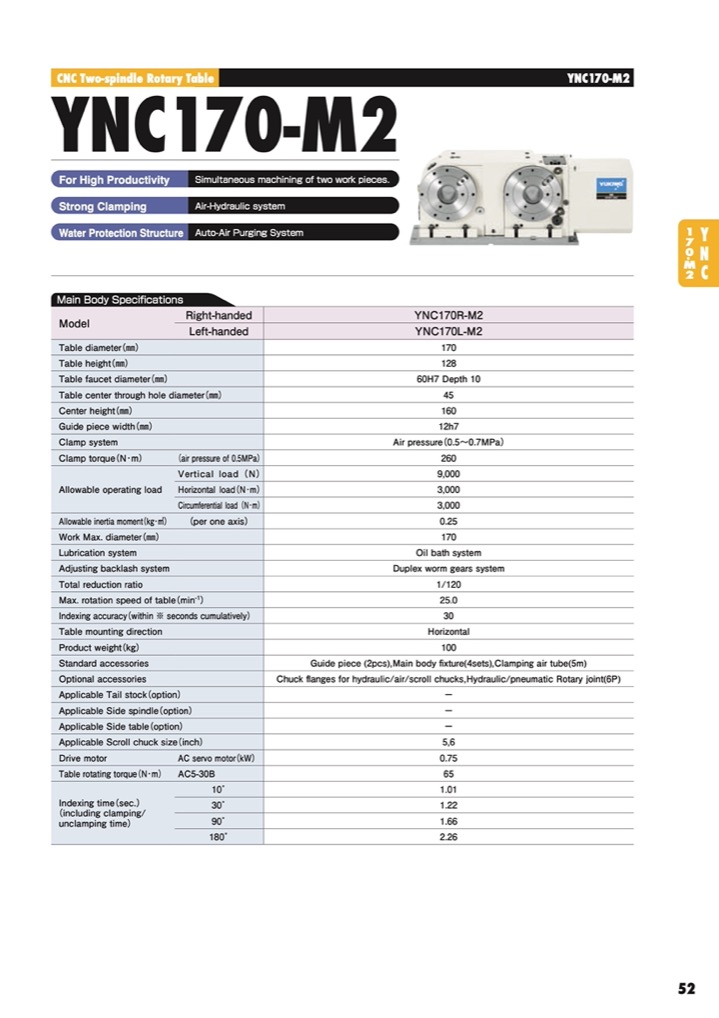

CNC Two-spindle
|
||
High productivityTwo work-pieces can be machined simultaneously and cycle time can be shortened.
Light weight・CompactSuitable for small-sized machining centers
High clamping torqueAir hydraulic clamping mechanism gives high clamping torque. |
 |
■ Accurate indexing ■ Outstanding water protection
■ Easy jig designing ■ Easy maintenance

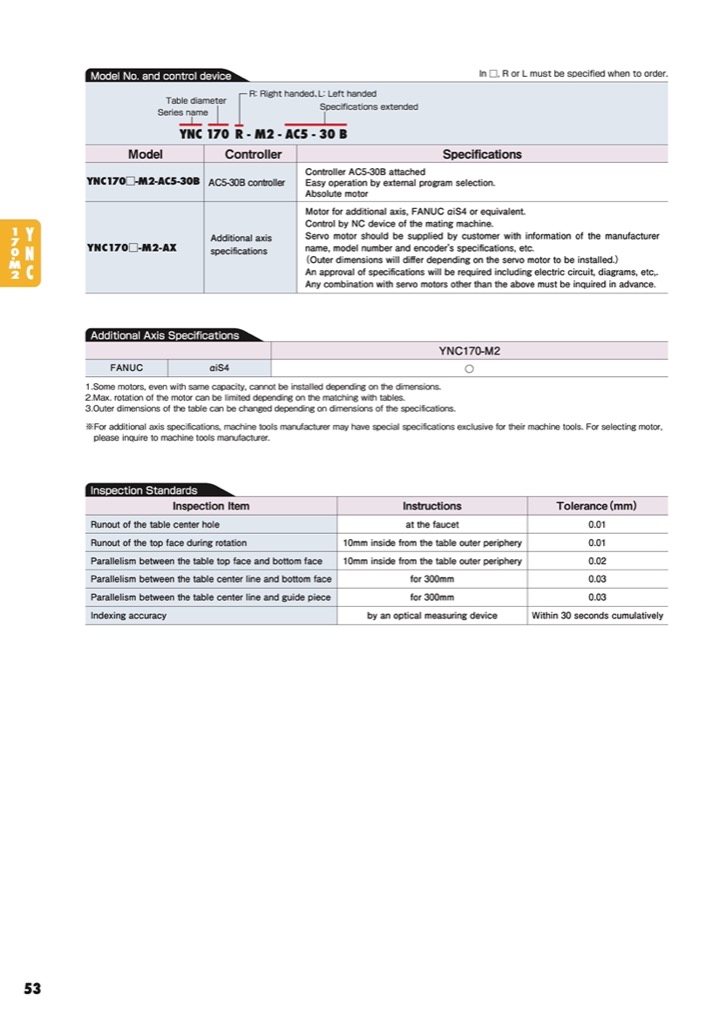

Unit:mm
| Model | Right Handed | YNC170R-M2 |
| Left Handed | YNC170L-M2 | |
| Table diameter | 170 | |
| Center height | 160 | |
| Table faucet diameter | 60H7 depth 10 | |
| Table center through hole diameter | 45 | |
| Distance between table centers | 250 | |
| Clamp system | Air pressure (0.5 〜 0.7Mpa) | |
| Clamp torque (N･ｍ) | 260 (0.5MPa) | |
| Indexing accuracy (Cumulative) | Within 30 seconds | |
Allowable operation load (N) |
Vertical load | 9,000 |
| Horizontal load | 3,000 | |
Circumferential load |
3,000 | |
Allowable inertia moment per one axis (kg･m²) |
0.25 | |
| Total reduction ratio | 1/120 | |
| Maximum rotation (min-1) | 25 | |
| Guide piece width | 12h7 | |
| Weight (kg) | 100 | |
 |
||
| * | Guide piece (2pcs), Fixtures (2sets), Air tube (5m) for table clamping are attached. |
| * | Corresponding to Controller for CNC rotary table or to motor for additional axis. |
 |
