Manual Indexing Head
Yukiwa Manual Indexing Head DMB series is used in milling machine, drill press, and slotter, and can make your indexing process easily and efficiency, and contributes to improve your productivity.

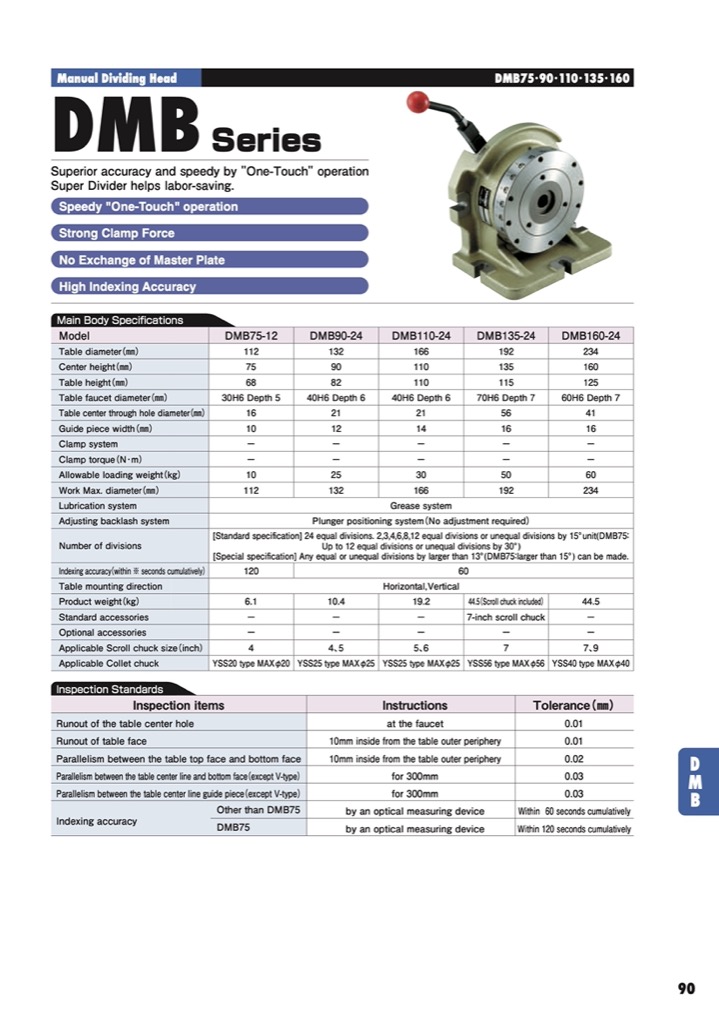

DMB series
Speedy operation
“Unclamping, Indexing, Clamping” can be done only by one reciprocating operation of the lever. The clamp is rigidly, and the index accuracy is precise.
Positioning simply
The numbers of division are maximum 24 divisions. The dividing position can be selected by reversing select pins. Positioning can be performed simply and quickly.
The attachments can be chosen
We have the tail stock for supporting a work end, spring collet for work holding, and collet adapter, etc. as accessories.
* |
The type V, attached in the model name, is only for vertical use. The table side turns to a top. |
* |
DMB135-24, 7-inch scroll chuck is attached as standard accessory. The other model should prepare a scroll chuck of customer. We have the Chuck Flange for scroll chucks as special accessory. |
