Yukiwa Electric Rotary Index Table DEF series is used in milling machine, drill press, automatic milling machine, and exclusive use processing machine, and can make your indexing process easily and efficiency, and contributes to improve your productivity.

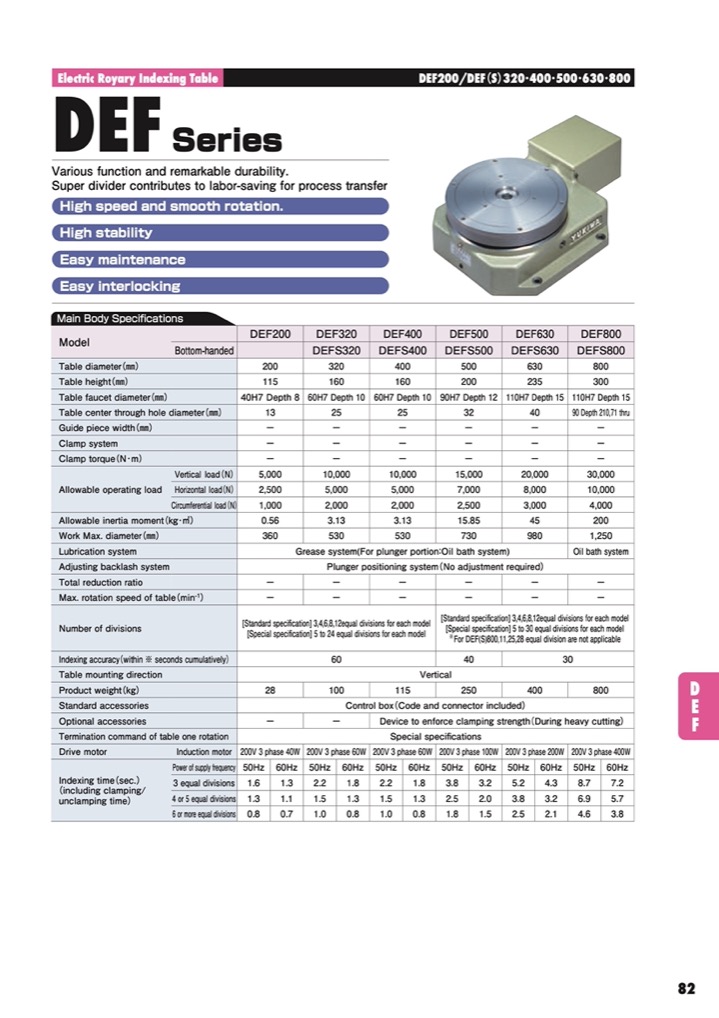

DEF series


Electric Rotary Indexing Table

Speedy and smoothly action

The DEF series, having a Geneva cam/taper plunger mechanism, are able to rotate speedy and smoothly.

Abundant division choice

The number of division is before 12 divisions with standard specification. At special edition, it corresponds to 30 divisions at DEF(S) 500 or bigger sizes.

Easy connection and easy maintenance

The electric drive mechanism is also suitable for interlocking with the specialized machines and easy for maintenance.
Electric Rotary Indexing Table


*
Please specify the number of division at the time of order.
*
The motor cover of a DEF type is a type attached beside a table, and a DEFS type is a type to which a motor is attached under a main part frame.
*
Control box is attached with standard specification. Moreover, in special specification, since you can also add waterproofing specification and the following functions, please ask.

Station changing control box Device to enforce table clamping strength Device to indicate completion of one rotaion
Station changing control box Device to enforce table clamping strength Device to indicate completion of one rotaion
