CNC rotary tables


Yukiwa CNC rotary tables are installed on the machining centers, tapping centers and special purpose machines and are used in various workings, such as the automobile parts, IT parts etc. They contribute to the streamline of production and the cost reduction in your company by the easy handling, strong rigidity, high precision and durability.


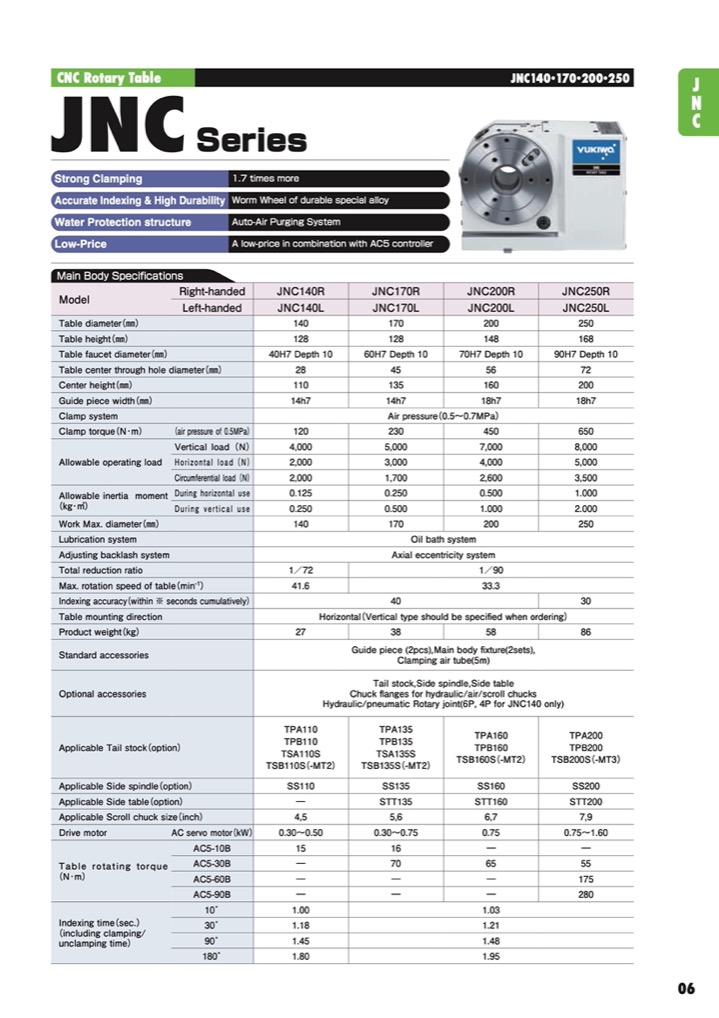

JNC Series






CNC rotary tables

Light weight Compact

Suitable for small-sized machining centers

Accurate indexing

Accurate indexing is available by durable worm wheel of special alloy.

Outstanding water protection

Auto-Air Purging system (PAT.) is built in as standard and effects against coolant outstandingly.



■ Easy jig designing　  ■ Easy maintenance

Unit:mm

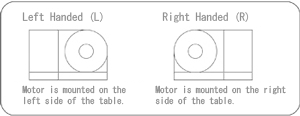

Model Right Handed JNC140R JNC170R JNC200R JNC250R
Left Handed JNC140L JNC170L JNC200L JNC250L
Table diameter 140 170 200 250
Center height 110 135 160 200
Table faucet diameter 40H7
depth 10		 60H7
depth 10		 70H7
depth 10		 90H7
depth 10

 Table center through

 hole diameter		 28 45 56 72
Clamp system Air pressure (0.5 ～ 0.7Mpa)
Clamp torque (N･ｍ) 120 (0.5MPa) 230 (0.5MPa) 450 (0.5MPa) 650 (0.5MPa)
Indexing accuracy (Cumulative) Within
40 seconds		 Within
30 seconds
Allowable operation load (N)
 Vertical load 4,000 5,000 7,000 8,000
Horizontal load 2,000 3,000 4,000 5,000
Circumferential load
 2,000 1,700 2,600 3,500
Allowable inertia Moment (kg･m²)
 During vertical use 0.25 0.5 1.0 2.0
During horizontal use
 0.125 0.25 0.5 1.0
Total reduction ratio 1/72 1/90 1/90 1/90
Maximum rotation (min-1 ) 41.6 33.3 33.3 33.3
Guide piece width 14h7 14h7 18h7 18h7
Weight (kg) 27 38 58 86


*

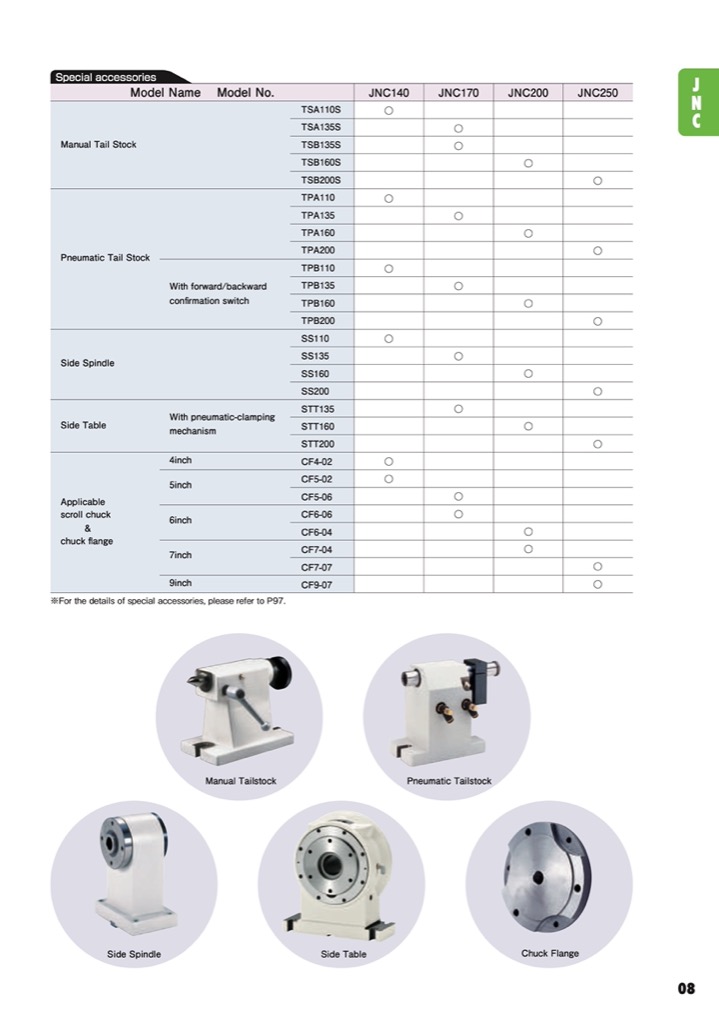

Guide piece (2pcs), Fixtures (2sets), Air tube (5m) for table clamping are attached.
*

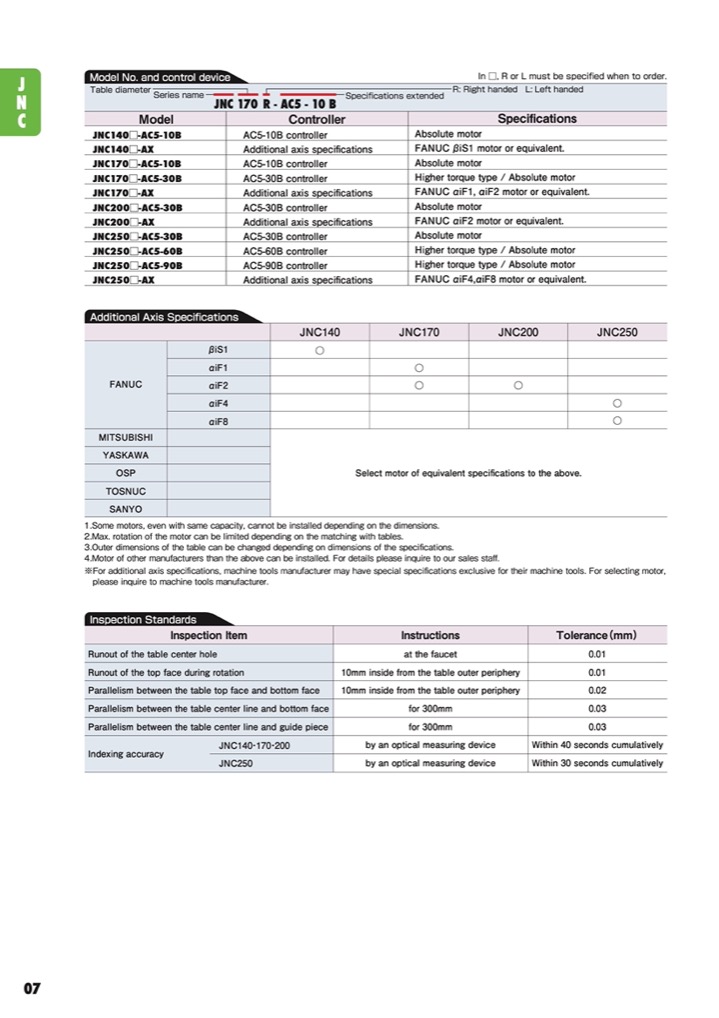

Corresponding to Controller for CNC rotary table or to motor for additional axis.


▲page top

JNCH Series


High-speed indexing

Max rotation of JNCH140 is 83.3min-1. Shortening the indexing time contributes to improve productivity in your company.

Accurate indexing

Accurate indexing is available by durable worm wheel of special alloy.

Outstanding water protection

Auto-Air Purging system (PAT.) is built in as standard and effects against coolant outstandingly.
   JNCH Series CNC rotary tables


■ Light weight・Compact　■ Easy jig designing 　■ Easy maintenance

Unit:mm
Model Right Handed JNCH140R JNCH170R JNCH200R JNCH250R
Left Handed JNCH140L JNCH170L JNCH200L JNCH250L
Table diameter 140 170 200 250
Center height 110 135 160 200
Table faucet diameter 40H7
depth10		 60H7
depth10		 70H7
depth10		 90H7
depth10
Table center throughhole diameter 28 45 56 72
Clamp system Air pressure (0.5MPa)
Clamp torque (N･ｍ) 120 (0.5MPa) 230 (0.5MPa) 450 (0.5MPa) 650 (0.5MPa)
Indexing accuracy (Cumulative) Within
40 seconds		 Within
30 seconds
Allowable operation load (N)
 Vertical load 4,000 5,000 7,000 8,000
Horizontal load 2,000 3,000 4,000 5,000
Circumferential load 2,000 1,700 2,600 3,500

Allowable inertia

Moment (kg･m²)
 During vertical use 0.125 0.25 0.5 1.0
During horizontal use
 0.06 0.125 0.3 0.5
Total reduction ratio 1/36 1/45 1/45 1/45
Maximum rotation (min-1) 83.3 66.6 66.6 66.6
Indexing time (second)
(Clamping/unclamping time of 0.2 sec. and processing time of AC4 controller are included.)

 10° 0.89 0.93 0.93 0.69
45° 1.01 1.12 1.12 0.81
90° 1.13 1.23 1.23 1.05
180° 1.29 1.47 1.47 1.17
Guide piece width 14h7 14h7 18h7 18h7
Weight (kg) 27 38 58 86


* Guide piece (2pcs), Fixtures (2sets), Air tube (5m) for table clamping are attached.
*

Corresponding to Controller for CNC rotary table or to motor for additional axis.


▲page top

YNCP Series


High clamping torque

Air hydraulic clamping mechanism gives high clamping torque.

Rigid bearing structure

Since the table shaft is supported by large bearings, displacement by load will be smallest. Centering of jig/work piece is easy.

Accurate indexing

Accurate indexing is available by durable worm wheel of special alloy. Indexing accuracy of YNCP250 is within 20 seconds cumulatively.
   YNCP Series CNC rotary tables


■ Light weight・Compact 　■ Easy jig designing　
■ Easy maintenance 　■ Outstanding water protection

Unit:mm
Model Right Handed YNCP170R YNCP200R YNCP250R
Left Handed YNCP170L YNCP200L YNCP250L
Table diameter 170 200 250
Center height 135 160 200
Table faucet diameter 60H7depth10 70H7depth10 90H7depth10
Table center through hole diameter
 45 56 72
Clamp system Air pressure (03～0.5MPa)
Clamp torque (N･ｍ) 550 (0.5MPa) 850 (0.5MPa) 1,050 (0.5MPa)
Indexing accuracy (Cumulative)
 Within
30 seconds		 Within
25 seconds		 Within
20 seconds
Allowable operation load (N) Vertical load 9,000 10,000 11,000
Horizontal load 4,000 6,000 7,000
Circumferential load 4,000 6,200 7,000
Allowable inertia Moment (kg･m²) During vertical use 0.5 1.0 2.0
During horizontal use 0.25 0.5 1.0
Total reduction ratio
 1/90 1/90 1/90
Maximum rotation (min-1) 33.3 33.3 33.3
Guide piece width 14h7 18h7 18h7
Weight (kg) 43 69 114


*

Guide piece (2pcs), Fixtures (2sets), Air tube (5m) for table clamping are attached.
*

Corresponding to Controller for CNC rotary table or to motor for additional axis.


▲page top

BNC Series


Strongest Clamping Torque

The clamping Torque is 3,000Nm with built-in Air Hydraulic unit.

Big Bore

The biggest table center hole diameter of 160 mm in the class. So it’s available for big diameter and long work pieces

Accurate indexing

Accurate indexing is available by durable worm wheel of special alloy. Indexing accuracy within 20 seconds cumulatively.
   BNC Series CNC rotary tables


■ Rigid bearing structure 　■ Easy maintenance　 ■ Outstanding water protection

Unit:mm
Model BNC320R
Table diameter   320
Center height   230
Table faucet hole diameter   170H7
Table center through hole dia.   160
Clamp system 　 Air pressure (0.3～0.5MPa)
Clamp torque (N・m) 3,000(0.5MPa)
Indexing accuracy (cumulative) (sec.) 20
Allowable operation load
(N)
Vertical load 18,000
Horizontal load 11,000
Circumferential load 18,000
Allowable inertia Moment
(kg・m²)
During vertical use 5.00
During horizontal use 2.50
Total reduction ratio   1/90
Maximum rotation (min-1) 22.2
Guide piece width   18h7
Product weight (kg) 174


*

Guide piece (2pcs), Fixtures (2sets), Air tube (5m) for table clamping are attached.
*

Corresponding to Controller for CNC rotary table or to motor for additional axis.


▲page top

NCT／NCR Series


NCT／NCR Series CNC rotary tables

Accurate indexing

Accurate indexing is available by durable worm wheel of special alloy.

High rigidity

High rigid body structure and strong clamping mechanism to clamp the circumference of table
Most suitable as special NC machine in FMS line.

Easy jig designing

Since there are tap holes or T-grooves on table surface, the designing of sub-table for jig mounting is easy.

Built-in rotary joint

Built-in type of rotary joint is available for NCR(S/B)410, NCT500 and NCT(S/U/B)630.

Table diameter
 320 410 500 630
Model for Vertical use only

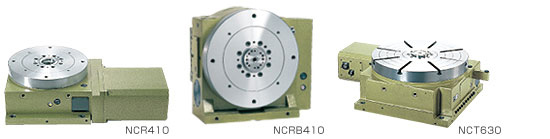

 NCT320 NCR410 NCT500 NCT630
Model for Vertical and Horizontal use
 NCT320W NCRS410 　 NCTS630
Model of motor mounting on top
 NCTU320 NCTU410 NCTU500 NCTU630
Model of motor mounting on back
 NCTB320 NCTB410 NCTB500 NCTB630
NCRB410
Height to table surface 230 220(U,B 230) 300 320
Total reduction ratio 1/90～1/180
Backlash adjustment Dual lead worm gear
Clamp system Hydraulic (3Mpa)
Clamp torque (N･ｍ) 750 1,200 3,100 4,500
Indexing accuracy (Cumulative)
 Within 20 seconds
Weight (kg) 220 245 475 700

*

Special specifications are available. For the details, please refer to our catalog.
*
